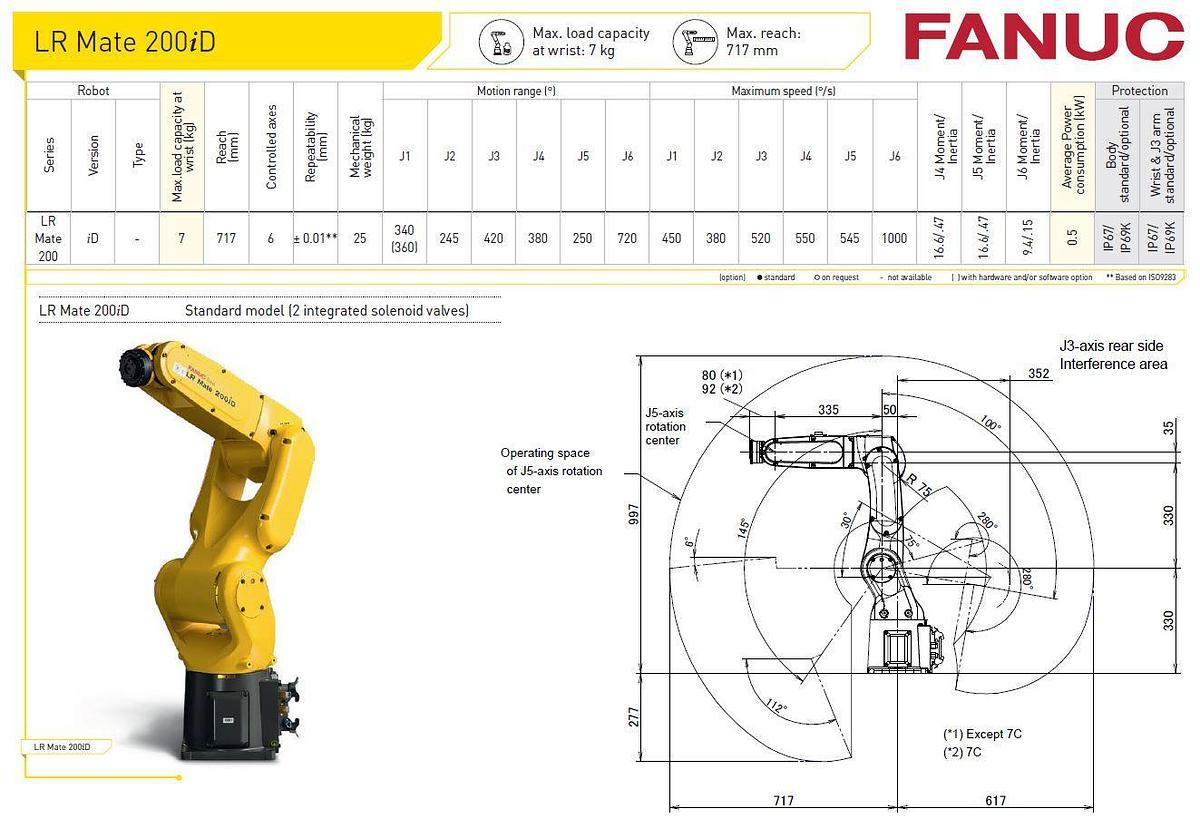

Fanuc LR Mate 200iD

Description

The FANUC LR Mate 200iD is a small, six-axis robot that resembles a human arm in terms of size and reach. It combines industry-leading robot weight-load capacity with IP67 protection requirements and exceptional FANUC quality.

Users benefit from increased productivity rates thanks to LR Mate’s strong servo motors, robust arm, and rapid acceleration. With robot connections available on the bottom of axis 1 to ensure minimal interference with peripheral equipment, LR Mate saves you time.

Give the RobotWorld engineering team a call at 313-242-0505 today, we are a premier Fanuc Authorized Integrator in Southeast Michigan!  Or you can press the “Contact Us” button below and leave us a message.

Motion Range

J1:  340°
J2:  245°
J3:  420°
J4:  380°
J5:  250°
J6:  720°

Maximum Speed

J1: 450
J2: 380
J3: 520
J4: 550
J5: 545
J6: 1000

Applications

Specifications

ManufacturerFanuc
ModelLR Mate 200iD
ConditionNew
Axes6
Payload7 kg
H-Reach717 mm
Repeatability±0.01 mm
Robot Mass25 kg
ControllerR30iB Mate
MountingFloor, Inverted, Angle
