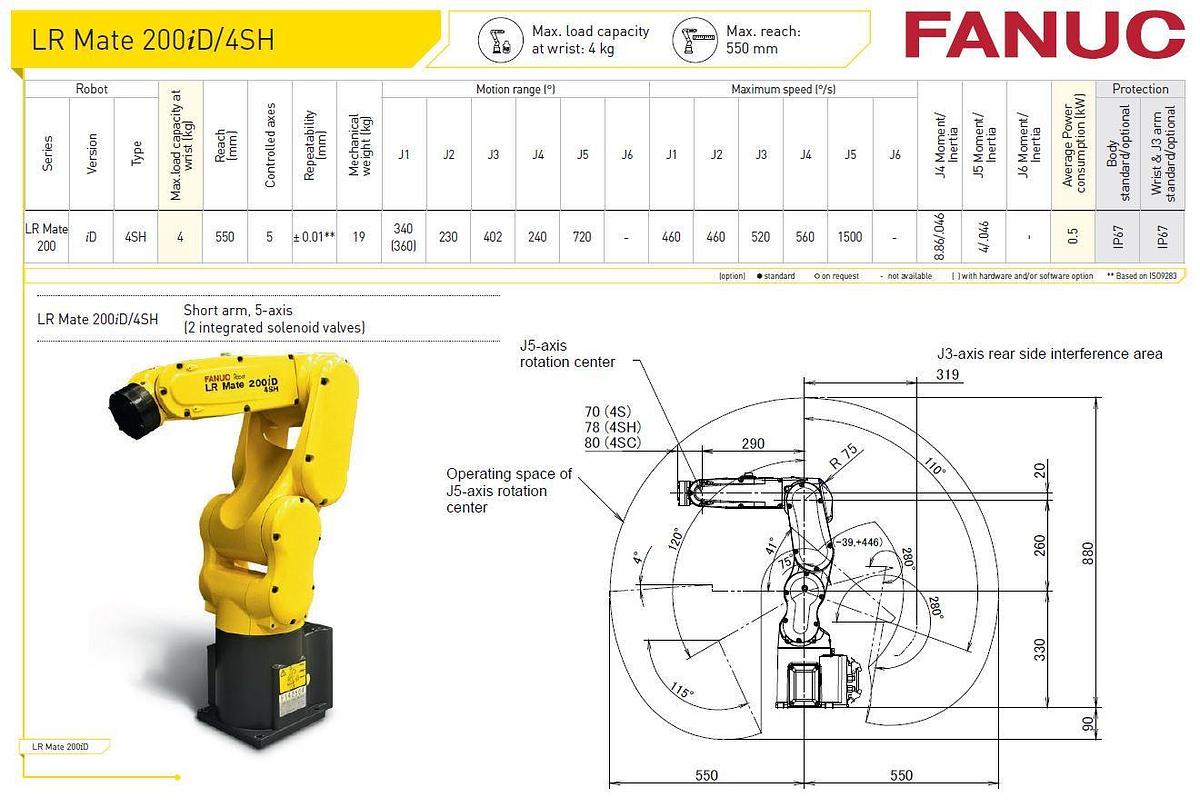

Fanuc LR Mate 200iD/4SH
Description
The short arm LR Mate 200iD/4SH offers the best 5-axis performance for weights up to 4 kilograms. This robot is a cost-effective 5-axis solution that offers complete flexibility and quick handling of light payloads.
This ultra-compact short arm model is perfect for tight work spaces and small machines because it has a 550 mm reach and a high-speed wrist. It is incredibly simple to implement, and is offered with a variety of extras, such as integrated intelligent (vision & force) capabilities, unique application packages, and complete IP69K protection.
Press the “Contact Us” button below to have our RobotWorld engineering team reach out to you or give us a call to discuss a potential Robotic integration project at 313-242-0505 today!
Motion Range
| J1: | 340° |
| J2: | 230° |
| J3: | 402° |
| J4: | 240° |
| J5: | 720° |
| J6: | – |
Maximum Speed
| J1: | 460 |
| J2: | 460 |
| J3: | 520 |
| J4: | 560 |
| J5: | 1500 |
| J6: | – |
Applications
Specifications
| Manufacturer | Fanuc |
| Model | LR Mate 200iD/4SH |
| Condition | New |
| Axes | 5 |
| Payload | 4 kg |
| H-Reach | 550 mm |
| Repeatability | ±0.01 mm |
| Robot Mass | 19 kg |
| Controller | R30iB Mate |
| Mounting | Floor, Inverted, Angle |
