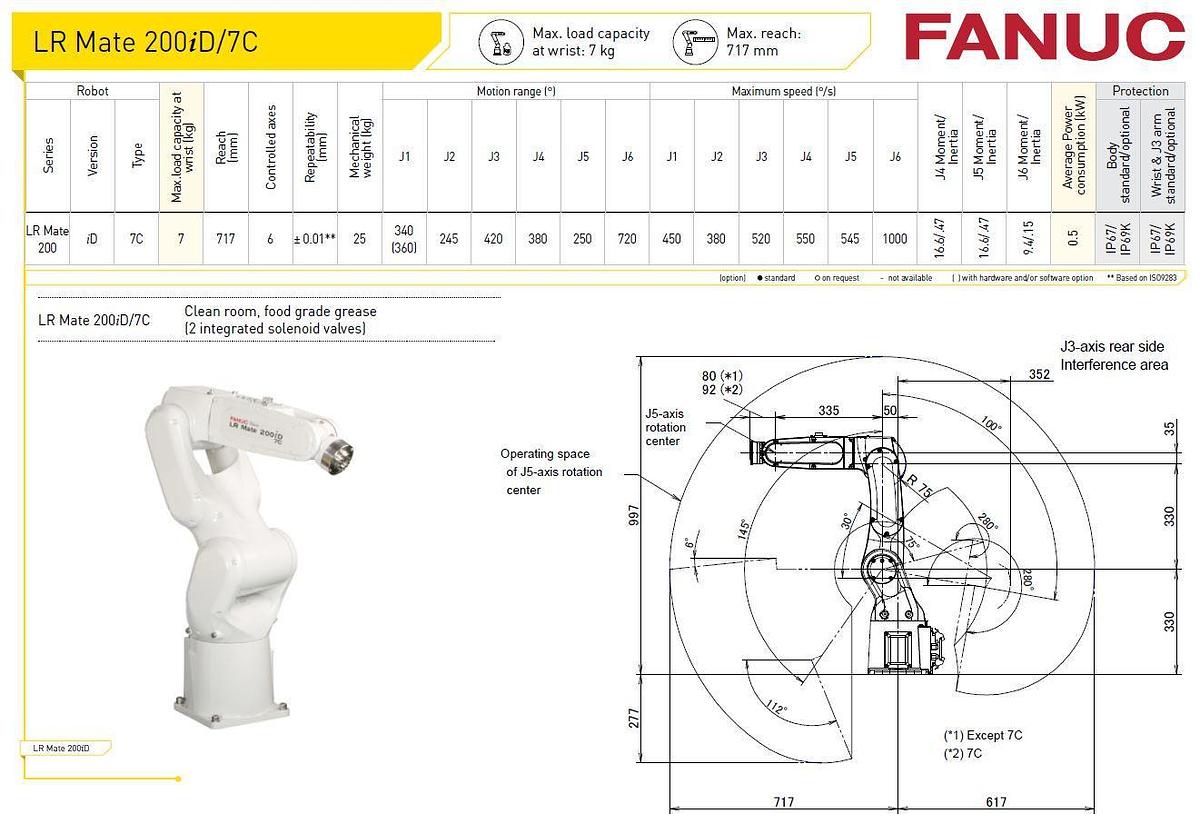

Fanuc LR Mate 200iD/7C

Description

This small, multi-purpose 6 axis robot was created for clean room and food applications and has been meticulously built for maximum hygiene. The LR Mate 200iD/7C is incredibly simple to integrate and is also offered with a variety of alternatives, including built-in intelligent (vision and force sensing) capability.

The Clean Room LR Mate’s are your best option for clean environments because they are water and dust proof.  For hot high pressure cleaning, there is an IP69K protection option.

Press the “Contact Us” button below to have our RobotWorld engineering team reach out to you or give us a call at 313-242-0505 today!

Motion Range

J1:  340°
J2:  245°
J3:  420°
J4:  380°
J5:  250°
J6:  720°

Maximum Speed

J1: 450
J2: 380
J3: 520
J4: 550
J5: 545
J6: 1000

Applications

Specifications

ManufacturerFanuc
ModelLR Mate 200iD/7C
ConditionNew
Axes6
Payload7 kg
H-Reach717 mm
Repeatability±0.01 mm
Robot Mass25 kg
ControllerR30iB Mate
MountingFloor, Inverted, Angle
