Fanuc LR Mate 200iD/7H
Description
The LR Mate 200iD/7H is a quick and adaptable Fanuc Robot that can quickly complete operations like robotic deburring and other material removal.
It’s simple to install this extremely small 5-axis robot into restricted locations. Like all LR Mate robots, it comes with a variety of options, such as full IP69K protection, integrated intelligent (vision & force sensing) functionality, and customized application packages.
Call our RobotWorld engineering team at 313-242-0505 or press the “Contact Us” button to leave a message and we will get back with you to discuss your application as soon as possible.

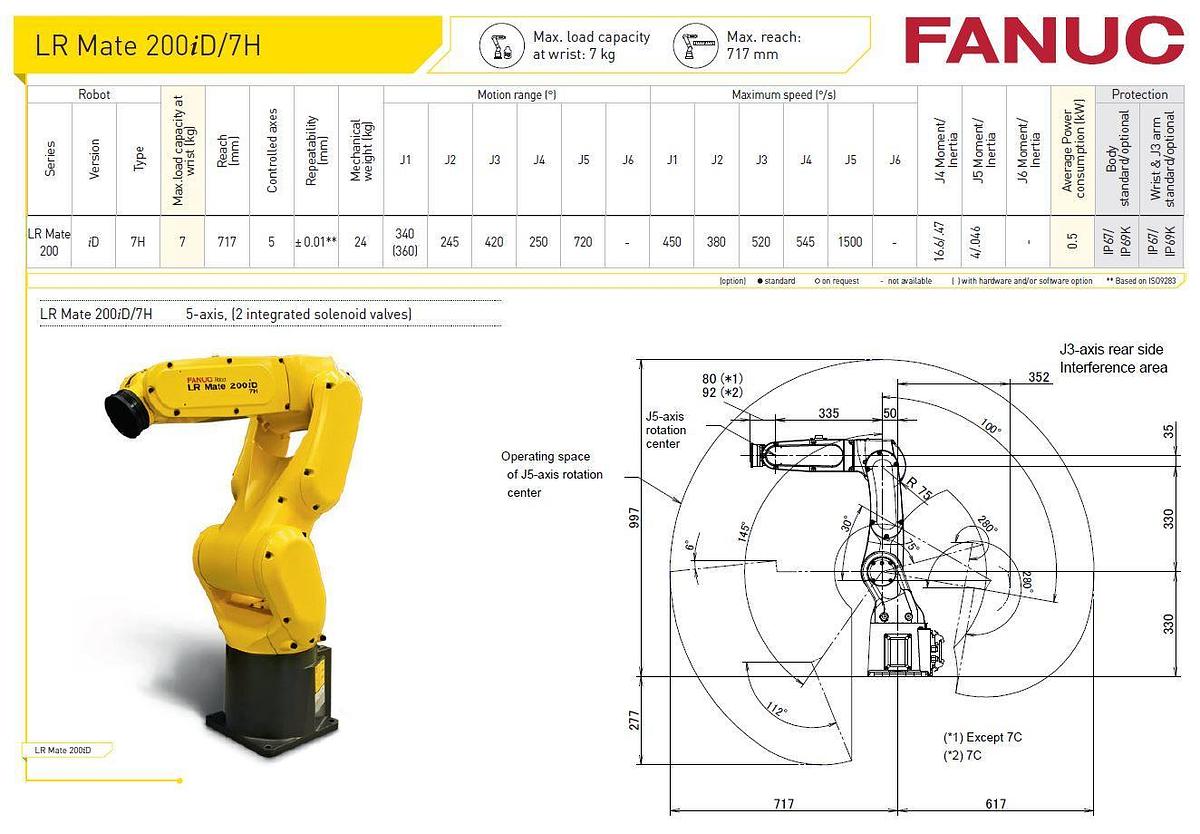

Motion Range
| J1: | 340° |
| J2: | 245° |
| J3: | 420° |
| J4: | 250° |
| J5: | 720° |
| J6: | – |
Maximum Speed
| J1: | 450 |
| J2: | 380 |
| J3: | 520 |
| J4: | 545 |
| J5: | 1500 |
| J6: | – |
Applications
Specifications
| Manufacturer | Fanuc |
| Model | LR Mate 200iD/7H |
| Condition | New |
| Axes | 5 |
| Payload | 7 kg |
| H-Reach | 717 mm |
| Repeatability | ±0.01 mm |
| Robot Mass | 24 kg |
| Controller | R30iB Mate |
| Mounting | Floor, Inverted, Angle |
