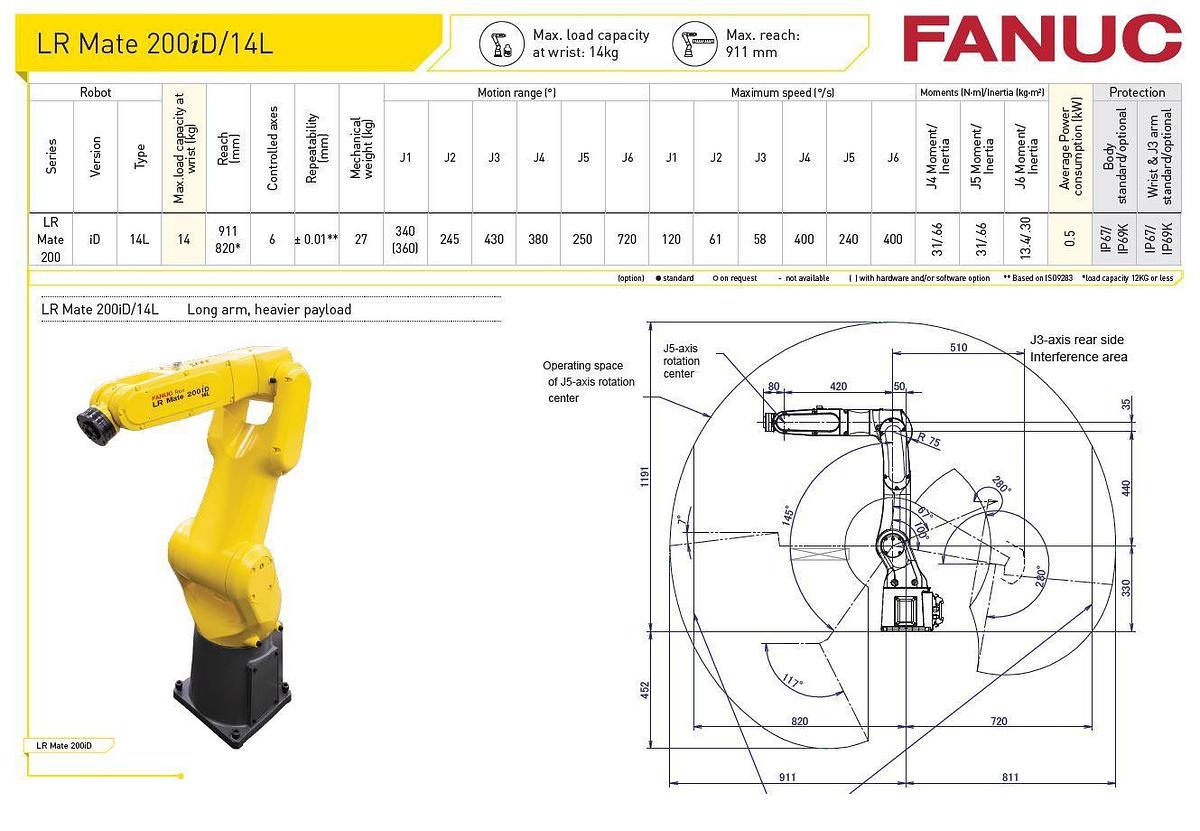

The Fanuc LR Mate 200iD/14L robot has highest payload of the LR Mate series and has an improved and compact mechanical construction. With a weight of 27 kg and a payload of 14 kg, this model is ideal for compact robot cells, production lines, and machine installation directly into or onto machines. With its extremely high moment and inertia at the wrist, it is ideal for high-productivity robotic handling, robotic machine tending, and robotic assembly applications. This robot is simple to install and, thanks to multiple mounting positions, provides enormous locational versatility, even in extremely narrow spaces.
Call us at 313-242-0505 or use the “Contact Us” button below to have a member of the RobotWorld engineering team get in touch with you!
Motion Range
| J1: |
340°
|
| J2: |
245°
|
| J3: |
430°
|
| J4: |
380°
|
| J5: |
250°
|
| J6: |
720°
|
Maximum Speed
| J1: |
120 |
| J2: |
61 |
| J3: |
58 |
| J4: |
400 |
| J5: |
240 |
| J6: |
400 |
Applications
