Fanuc LR Mate 200iD/7LC
Description
The Fanuc 6-axis LR Mate 200iD/7LC Clean Room Robot is a high-performer for manufacturing and lab applications and provides additional versatility due to increased reach. It, like all LR Mate robots, comes with a variety of options, such as integrated intelligent (vision & force sensing) functionality and special application packages.
Call our number at 313-242-0505 today to talk to our RobotWorld engineering team or press the “Contact Us” button below to leave us a message and we will get back to you as soon as possible!

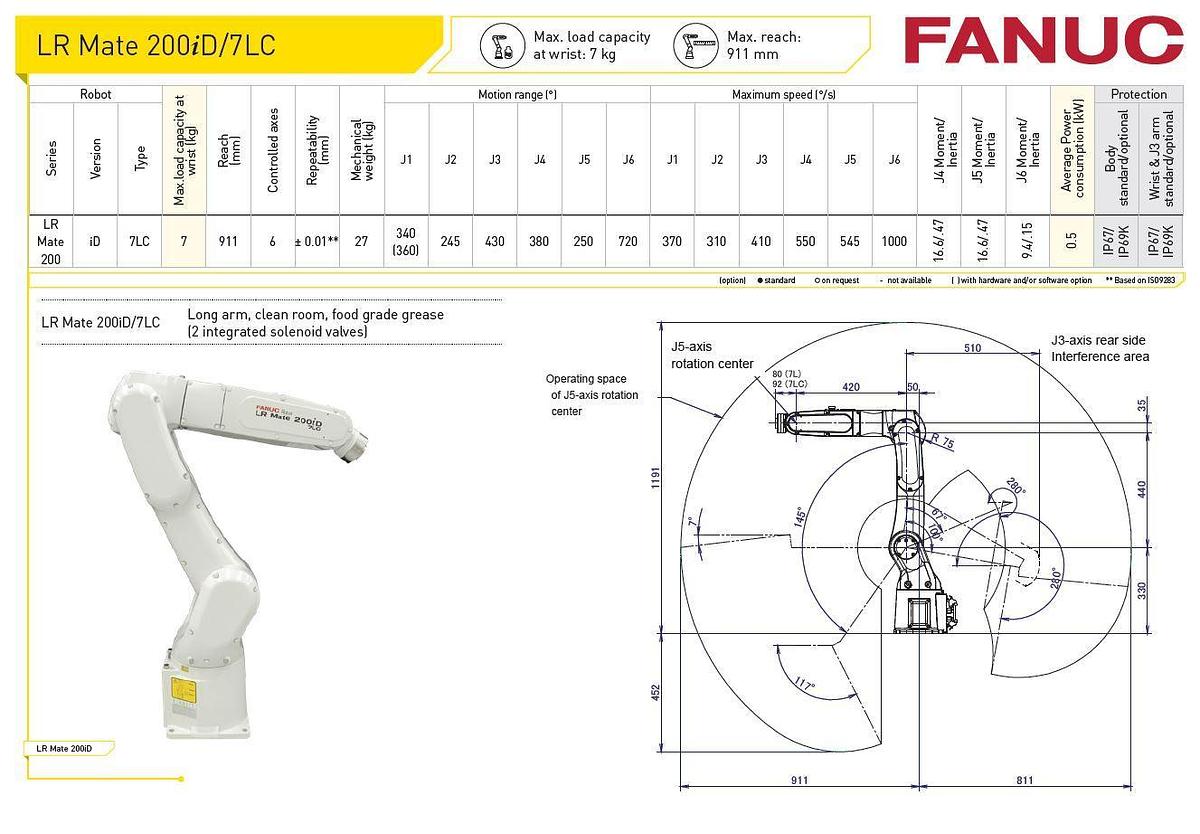

Motion Range
| J1: | 340° |
| J2: | 245° |
| J3: | 430° |
| J4: | 380° |
| J5: | 250° |
| J6: | 720° |
Maximum Speed
| J1: | 370 |
| J2: | 310 |
| J3: | 410 |
| J4: | 550 |
| J5: | 545 |
| J6: | 1000 |
Applications
Specifications
| Manufacturer | Fanuc |
| Model | LR Mate 200iD/7LC |
| Condition | New |
| Axes | 6 |
| Payload | 7 kg |
| H-Reach | 911 mm |
| Repeatability | ±0.01 mm |
| Robot Mass | 27 kg |
| Controller | R30iB Mate |
| Mounting | Floor, Inverted, Angle |
