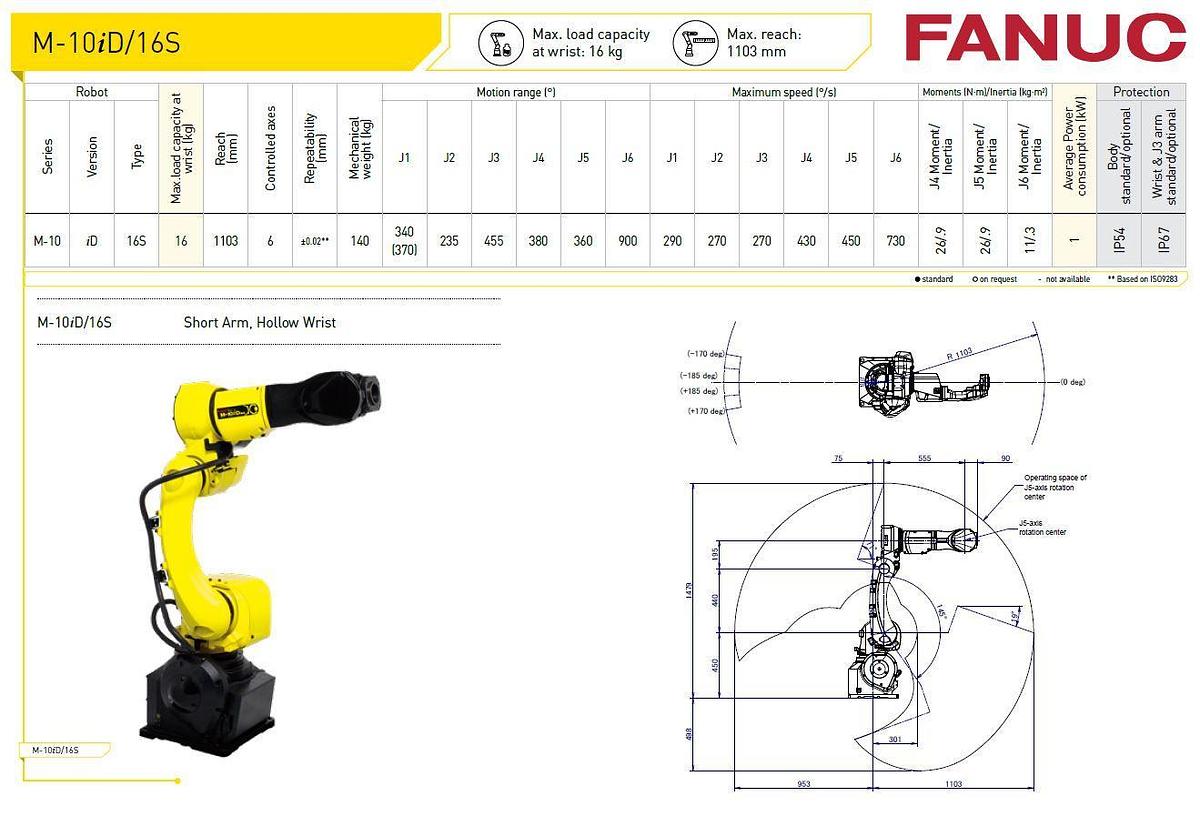

Fanuc M-10iD/16S
Description
The Fanuc M-10iD/16S Robot is highly versatile and designed specifically for small work spaces. It can also be used for top mount applications. The improved hollow wrist design supports payloads of up to 16 kg, a significant improvement over its predecessors.
This short arm model features high rigidity which results in minimal vibration, even with a 25% increase in payload.
If you have questions about an upcoming automation project, the engineering staff at RobotWorld Automation can help! Call us at 313-242-0505 or leave a message by clicking the contact us button below.
Motion Range
| J1: | 340° |
| J2: | 235° |
| J3: | 455° |
| J4: | 380° |
| J5: | 360° |
| J6: | 900° |
Maximum Speed
| J1: | 290 |
| J2: | 270 |
| J3: | 270 |
| J4: | 430 |
| J5: | 450 |
| J6: | 730 |
Applications
Specifications
| Manufacturer | Fanuc |
| Model | M-10iD/16S |
| Condition | New |
| Axes | 6 |
| Payload | 16 kg |
| H-Reach | 1103 mm |
| Repeatability | ±0.02 mm |
| Robot Mass | 140 kg |
| Controller | R30iB |
| Mounting | Floor, Inverted, Angle |
