Fanuc M-20iD/35
Description
The M-20iD/35 Fanuc Robot, with a payload of 35 kg, is ideal for material handling of heavy parts. This robot is appropriate for a wide range of applications due to its remarkable axis speeds and maximum precision in its class.
The M-20iD series includes a built-in cable management system as well as a large hollow wrist to prevent cable snagging and wear.
Give RobotWorld a call at 313-242-0505 to discuss your next integration project or to help specify your next Fanuc industrial robot! Additionally, you can leave a detailed message by clicking the contact us button below.

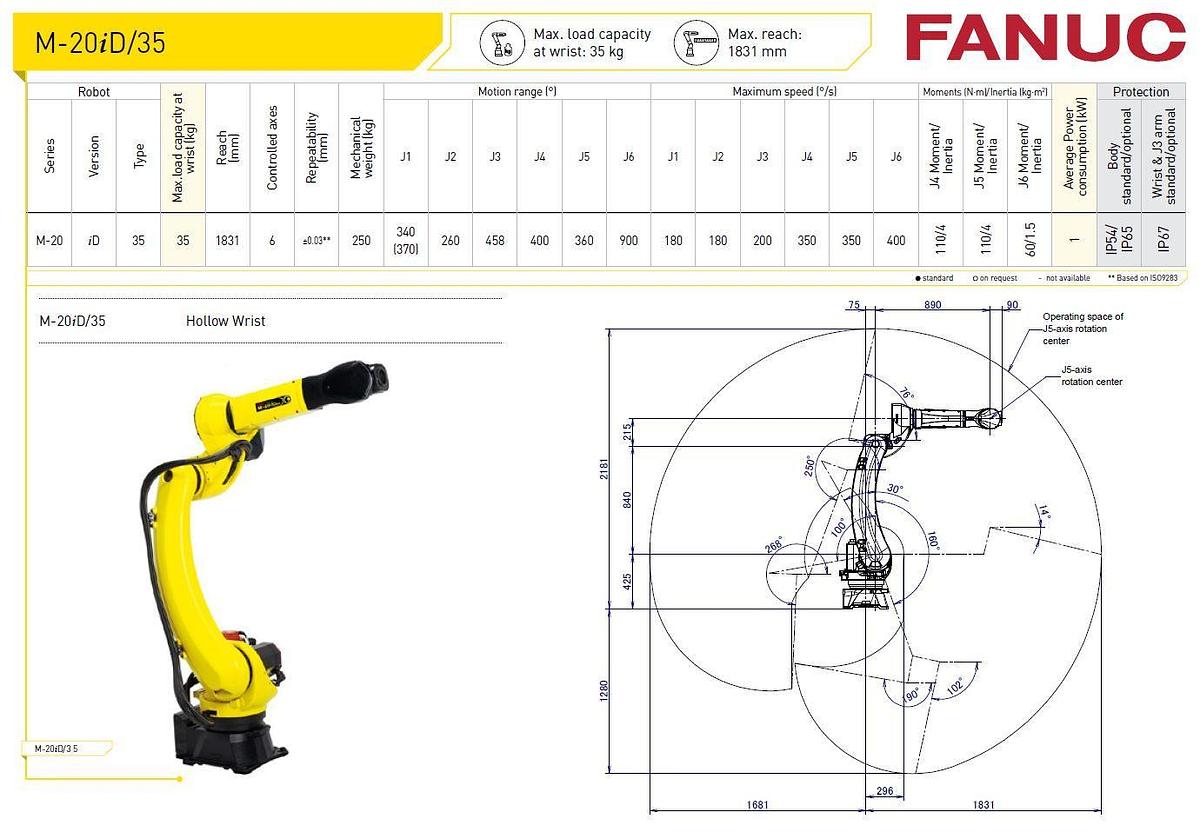

Motion Range
| J1: | 340° |
| J2: | 260° |
| J3: | 458° |
| J4: | 400° |
| J5: | 360° |
| J6: | 900° |
Maximum Speed
| J1: | 180 |
| J2: | 180 |
| J3: | 200 |
| J4: | 350 |
| J5: | 350 |
| J6: | 400 |
Applications
Specifications
| Manufacturer | Fanuc |
| Model | M-20iD/35 |
| Condition | New |
| Axes | 6 |
| Payload | 35 kg |
| H-Reach | 1831 mm |
| Repeatability | ±0.03 mm |
| Robot Mass | 250 kg |
| Controller | R30iB |
| Mounting | Floor, Inverted, Angle |
