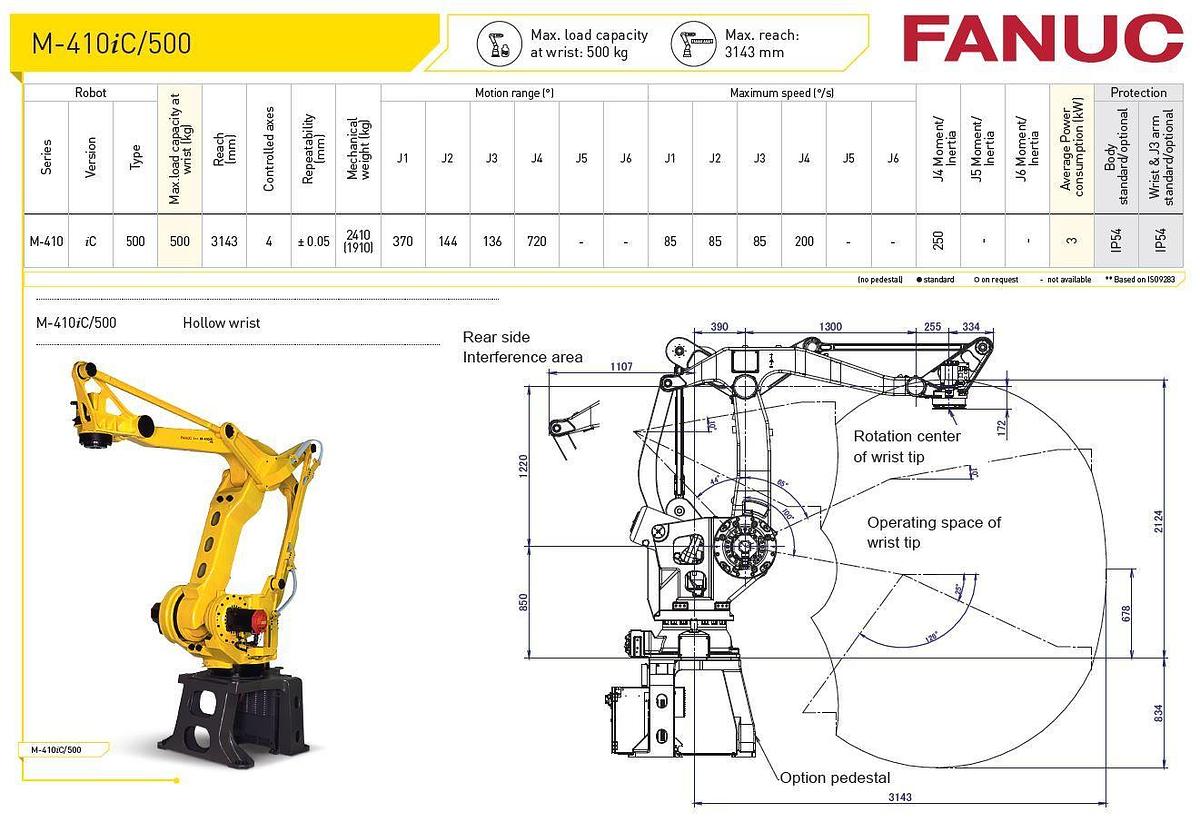

Fanuc M-410iC/500
Description
The M-410iC/500 palletizing robot increases throughput and has a lifting capacity of 500 kg. The M-410 series is the solution for palletizing and handling applications, designed specifically for the job by the company that built the world’s first dedicated palletizing robot.
For greater flexibility, the M-410iC/500 can be pedestal mounted depending on the application. The robot controller can be housed within the pedestal or as a separate unit.
The integration team at RobotWorld Automation can assist you with any questions you have about an upcoming application. Call us at 313-242-0505 or leave a message by clicking the contact us button below.
Motion Range
| J1: | 370° |
| J2: | 144° |
| J3: | 136° |
| J4: | 720° |
| J5: | – |
| J6: | – |
Maximum Speed
| J1: | 85 |
| J2: | 85 |
| J3: | 85 |
| J4: | 200 |
| J5: | – |
| J6: | – |
Applications
Specifications
| Manufacturer | Fanuc |
| Model | M-410iC/500 |
| Condition | New |
| Axes | 4 |
| Payload | 500 kg |
| H-Reach | 3143 mm |
| Repeatability | ±0.05 mm |
| Robot Mass | 2410 kg |
| Controller | R30iB |
| Mounting | Floor |
