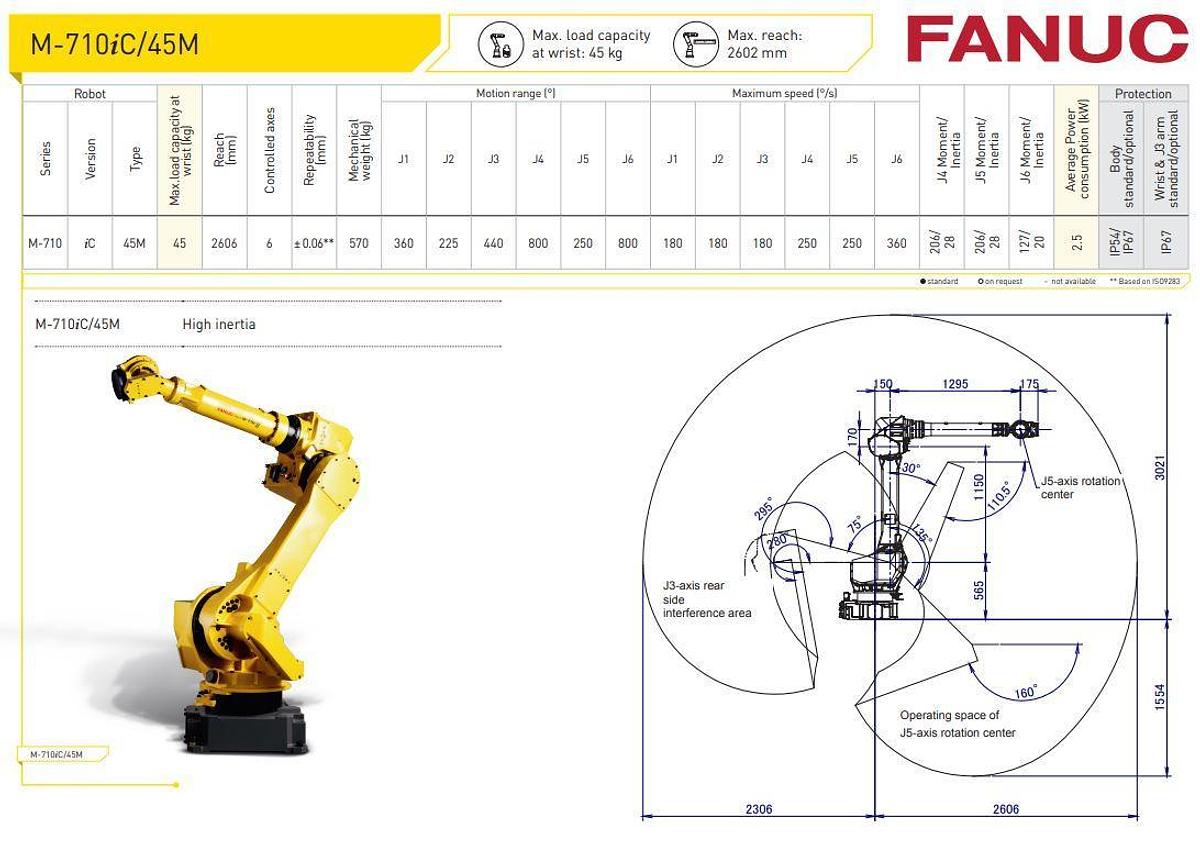

Fanuc M-710iC/45M
Description
Through our authorized service integration agreement with Fanuc, we have the wide motion, multipurpose Fanuc M-710iC/45M robot available at RobotWorld.
When equipped with a drive enhancement unit, this type, which combines speed with a large work envelope and is perfectly suited for high-speed transfer operations. It is a great option for performing tasks where space is at a premium due to its small size and slender wrist.
Call the RobotWorld engineering and sales team at 313-242-0505 or press the “Contact Us” button to leave an email message about your application.
Motion Range
| J1: | 360° |
| J2: | 225° |
| J3: | 440° |
| J4: | 800° |
| J5: | 250° |
| J6: | 800° |
Maximum Speed
| J1: | 180 |
| J2: | 180 |
| J3: | 180 |
| J4: | 250 |
| J5: | 250 |
| J6: | 360 |
Applications
Specifications
| Manufacturer | Fanuc |
| Model | M-710iC/45M |
| Condition | New |
| Axes | 6 |
| Payload | 45 kg |
| H-Reach | 2606 mm |
| Repeatability | ±0.06 mm |
| Robot Mass | 570 kg |
| Controller | R30iB Plus |
| Mounting | Floor, Inverted, Angle |
