Fanuc M-710iC/50
Description
The permissible axis inertias are quite high on the Fanuc M-710iC/50. This model is perfect for handling heavy workpieces, such as sheets of glass and steel panels, thanks to its huge envelope and 50 kg payload capacity.
This cutting-edge line of portable robots has a slender wrist, a sturdy arm, and a small footprint. It is a popular robot for robotic machine tending, grinding, polishing, deburring, water jet cutting, and washing applications because of its high axis speeds and vast 6-axis adaptability.
Press the “Contact Us” button below to have our RobotWorld engineering team reach out to you or give us a call at 313-242-0505 today!

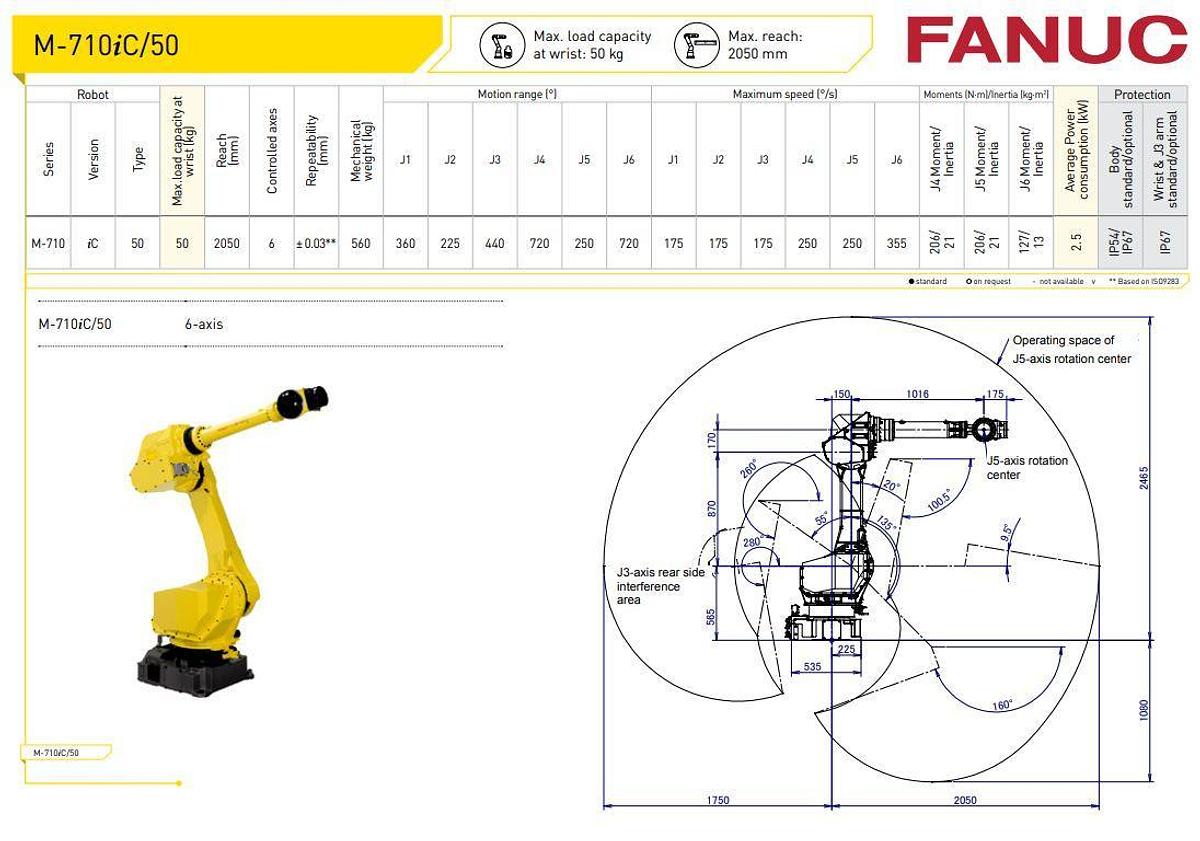

Motion Range
| J1: | 360° |
| J2: | 225° |
| J3: | 440° |
| J4: | 720° |
| J5: | 250° |
| J6: | 720° |
Maximum Speed
| J1: | 175 |
| J2: | 175 |
| J3: | 175 |
| J4: | 250 |
| J5: | 250 |
| J6: | 355 |
Applications
Specifications
| Manufacturer | Fanuc |
| Model | M-710iC/50 |
| Condition | New |
| Axes | 6 |
| Payload | 50 kg |
| H-Reach | 2050 mm |
| Repeatability | ±0.03 mm |
| Robot Mass | 560 kg |
| Controller | R30iB Plus |
| Mounting | Floor, Inverted, Angle |
