Fanuc M-710iC/50H

Description

The 710iC series of Fanuc robots feature a slender wrist, a sturdy arm, and a small footprint. This particular model is incredibly quick and has a 5-axis design that makes it perfect for robotic packing and palletizing applications.

Short connections to the tool, more dependable wiring, I/out gripper signals, and 24 volt air connectors are all made possible by the integrated air and electrical services from J1 to J3.

Give us a call at 313-242-0505 today or press the “Contact Us” button below to have or team at RobotWorld Automation reach out to you regarding your application.

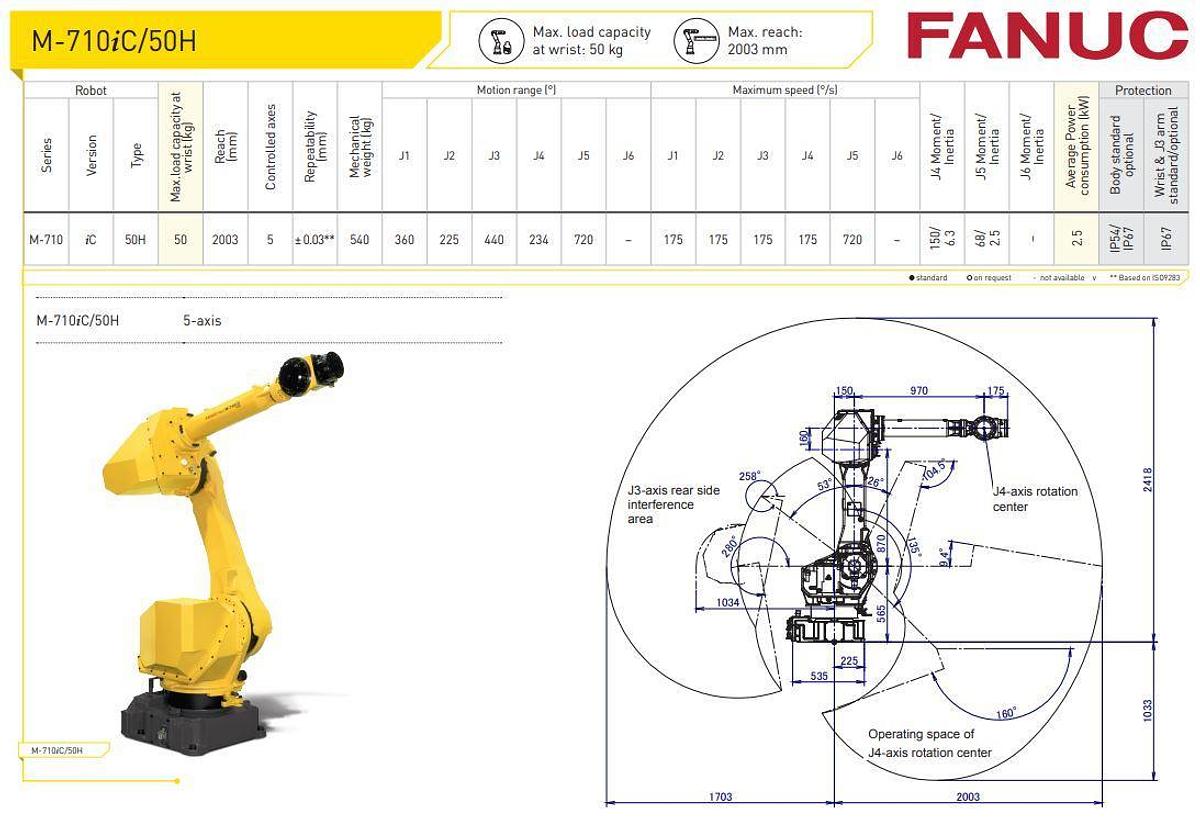

Motion Range

J1:  360°
J2:  225°
J3:  440°
J4:  234°
J5:  720°
J6:  –

Maximum Speed

J1: 175
J2: 175
J3: 175
J4: 175
J5: 720
J6:  –

Applications

Specifications

ManufacturerFanuc
ModelM-710iC/50H
ConditionNew
Axes5
Payload50 kg
H-Reach2003 mm
Repeatability±0.03 mm
Robot Mass540 kg
ControllerR30iB Plus
MountingFloor, Inverted, Angle
