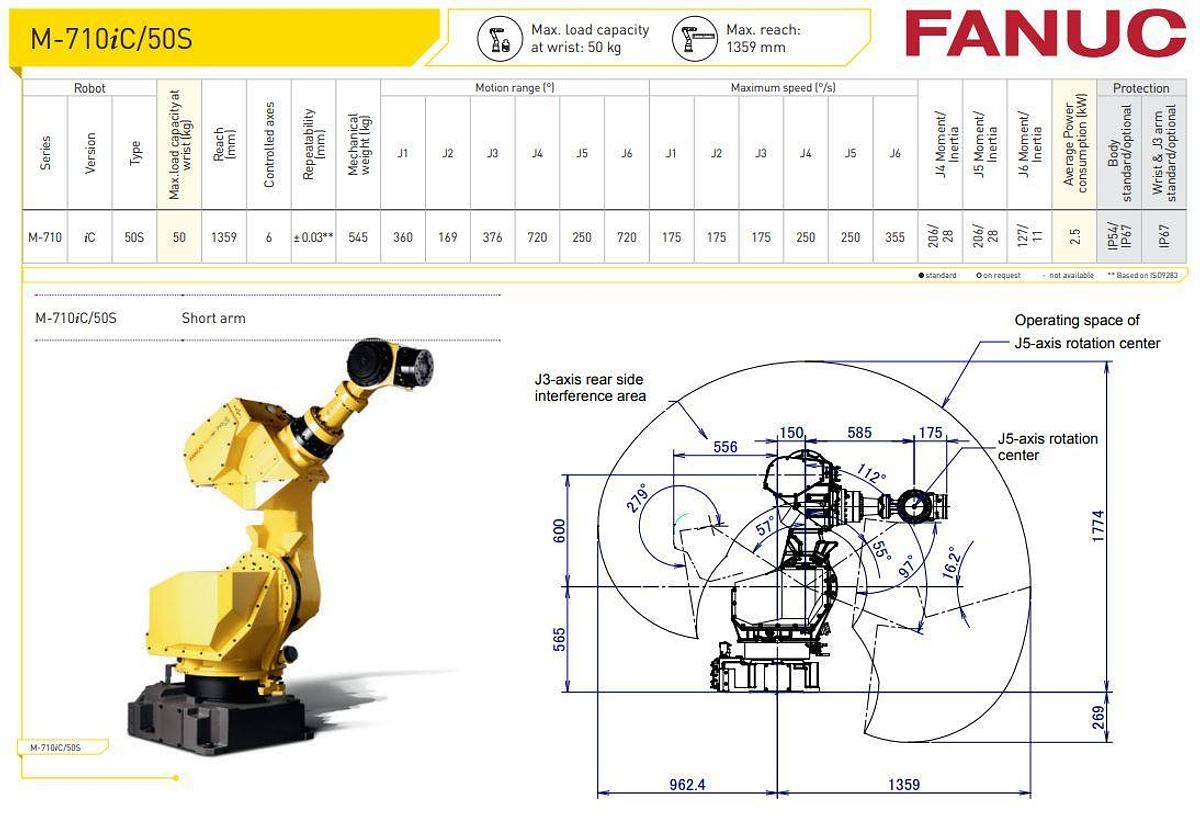

Fanuc M-710iC/50S

Description

With a stiff arm, slender wrist, and compact footprint, this line of lightweight Fanuc robots stands out. They are characterized by high axis speeds and are very quick. This short-arm version was created primarily to fit into confined locations like workstations and machines.

For secondary food handling and processing applications such tray picking, handling, and transfer, food grade grease is available for wrists along with an epoxy-coated white body.

Press the “Contact Us” button below to have our RobotWorld engineering team reach out to you or give us a call at 313-242-0505 today!

Motion Range

J1:  360°
J2:  169°
J3:  376°
J4:  720°
J5:  250°
J6:  720°

Maximum Speed

J1: 175
J2: 175
J3: 175
J4: 250
J5: 250
J6: 355

Applications

Specifications

ManufacturerFanuc
ModelM-710iC/50S
ConditionNew
Axes6
Payload50 kg
H-Reach1359 mm
Repeatability±0.03 mm
Robot Mass545 kg
ControllerR30iB Plus
MountingFloor, Inverted, Angle
