Fanuc M-710iC/50T Toploader Robot

Description

This cutting-edge line of Fanuc robots has a slender wrist, a sturdy arm, and a small footprint. It has high axis speeds and is very quick. This top mount variant, which can support 50 kg, is the lightest version available in this series. It offers a variety of mounting choices, conserves space, and has incredibly high repeatability.

The M-710 has unmatched reliability and repeatability ( 0.07 mm), great performance, and high-speed axes, accurate, and sturdy purpose-built reducers, and motors.

Call us at 313-242-0505 or click “Contact Us” to have a member of the RobotWorld Automation team get in touch with you about your application.

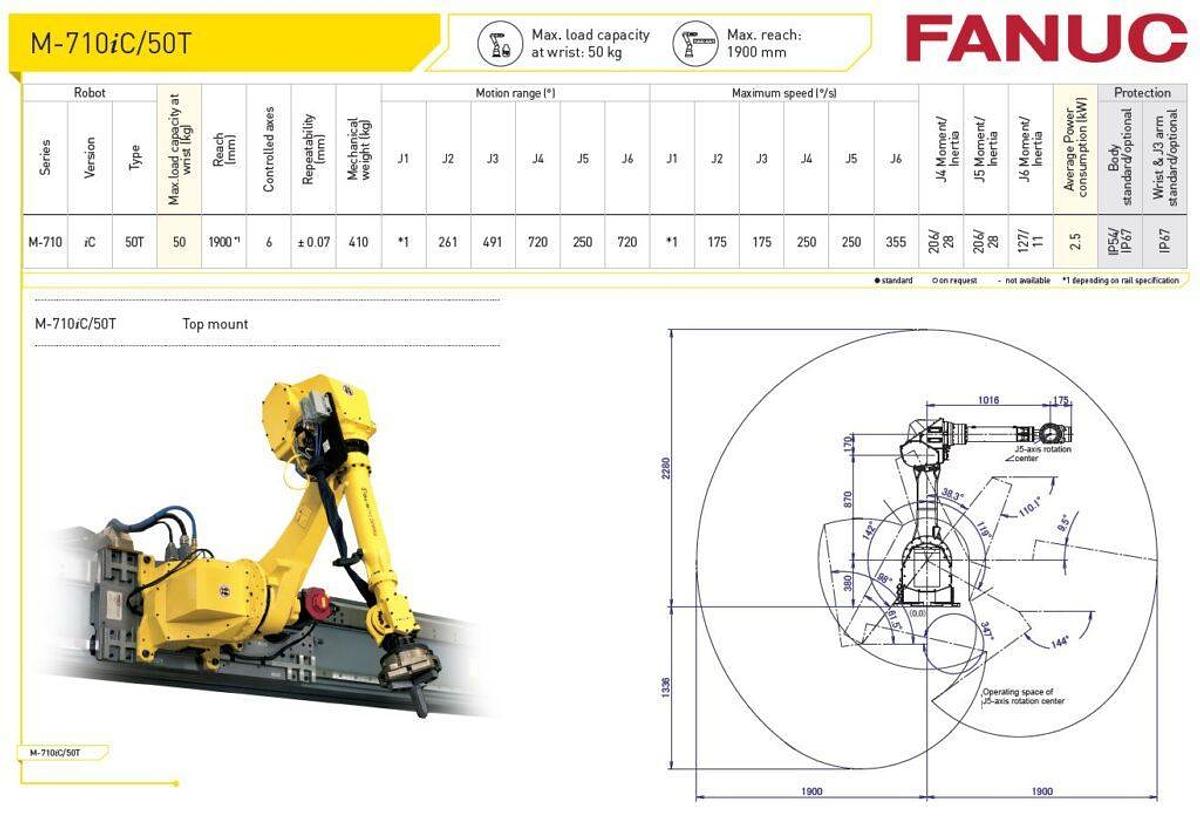

Motion Range

J1:  *Rail Dependent
J2:  261°
J3:  491°
J4:  720°
J5:  250°
J6:  720°

Maximum Speed

J1: *Rail Dependent
J2: 175
J3: 175
J4: 250
J5: 250
J6:  355

Applications

Specifications

ManufacturerFanuc
ModelM-710iC/50T Toploader Robot
ConditionNew
Axes6
Payload50 kg
H-Reach1900 mm
Repeatability±0.07 mm
Robot Mass410 kg
ControllerR30iB Plus
MountingFloor, Inverted, Angle
