Fanuc M-710iC/70T Toploader Robot

Description

The M-710iC/70T is a fantastic option for tasks like assembly with heavy loads. The top mount option on this model allows you more customization.

This series of Fanuc robots has a slender wrist, a sturdy arm, and a small footprint. This top mount version, which has the best repeatability in the entire range, is the lightest. With its numerous mounting options, which can support 70 kg, you may conserve floor space.

Please use the “Contact Us” button below to have our RobotWorld engineering team contact you, or call us at 313-242-0505 today!

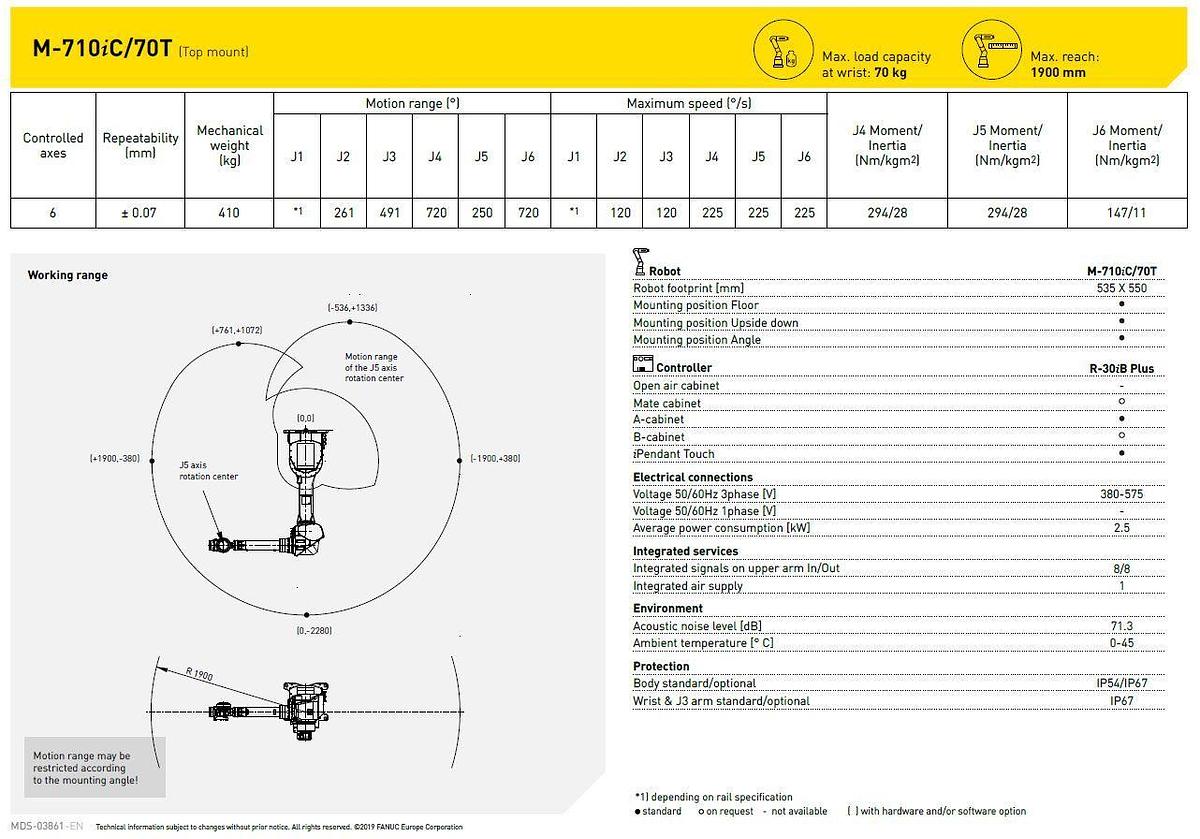

Motion Range

J1: *Rail Dependent
J2:  261°
J3:  491°
J4:  720°
J5:  250°
J6:  720°

Maximum Speed

J1:  *Rail Dependent
J2: 120
J3: 120
J4: 225
J5: 225
J6: 225

Applications

Specifications

ManufacturerFanuc
ModelM-710iC/70T Toploader Robot
ConditionNew
Axes6
Payload70 kg
H-Reach1900 mm
Repeatability±0.07 mm
Robot Mass410 kg
ControllerR30iB Plus
MountingFloor, Inverted, Angle
