Fanuc R-2000iB/200T Toploader Robot

Description

This top or rail mount 6 axis Fanuc robot, model R-2000iB-200T, saves valuable floor space and expands your options when space constraints limit the scope of your cell designs. It is an excellent choice for machine tending applications because it is designed for a wide range of processes and can serve multiple machines.

This robot can lift up to 200 kg with a 2200 mm envelope, making it ideal for medium and high payloads while saving floor space!

Press the “Contact Us” button below to have our RobotWorld engineering team reach out to you or give us a call at 313-242-0505 today!

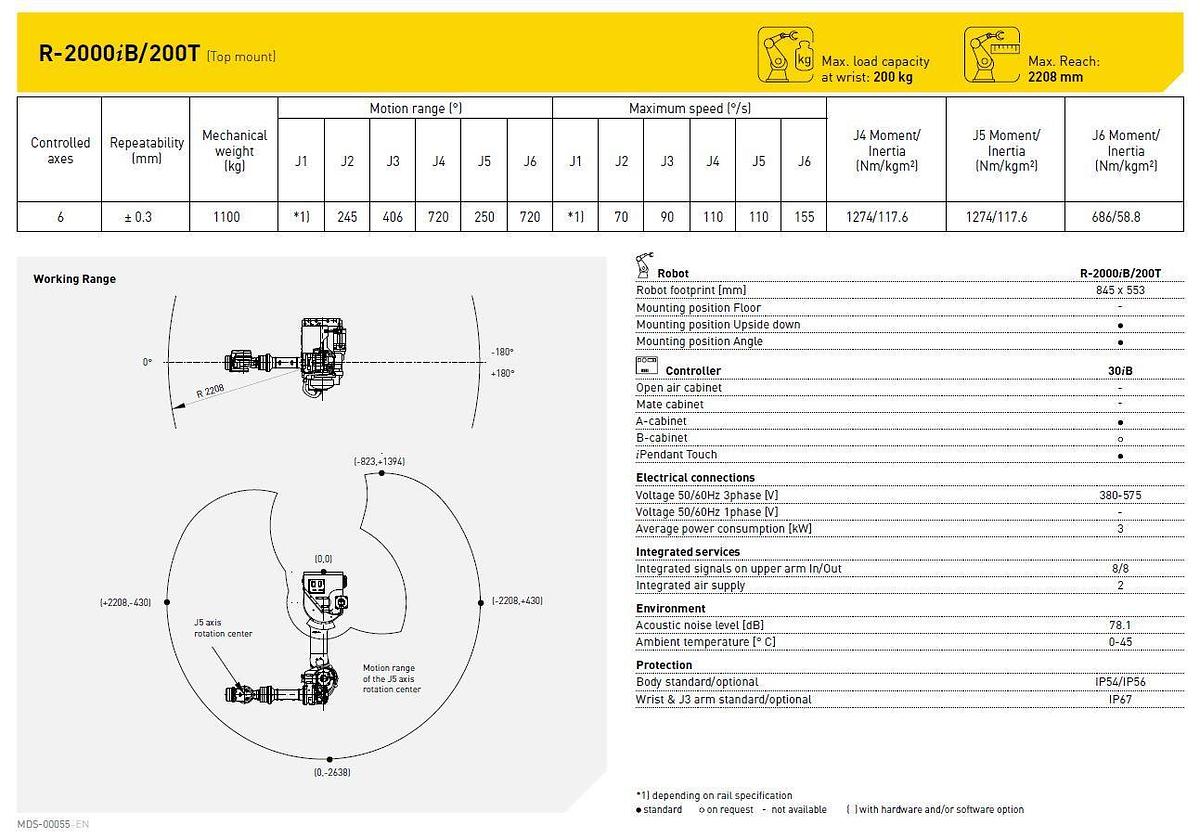

Motion Range

J1:  *Rail Dependent
J2:  245°
J3:  406°
J4:  720°
J5:  250°
J6:  720°

Maximum Speed

J1: *Rail Dependent
J2: 70
J3: 90
J4: 110
J5: 110
J6: 155

Applications

Specifications

ManufacturerFanuc
ModelR-2000iB/200T Toploader Robot
ConditionNew
Axes6
Payload200 kg
H-Reach2208 mm
Repeatability±0.3 mm
Robot Mass1100 kg
ControllerR30iB Plus
MountingInverted, Angle
