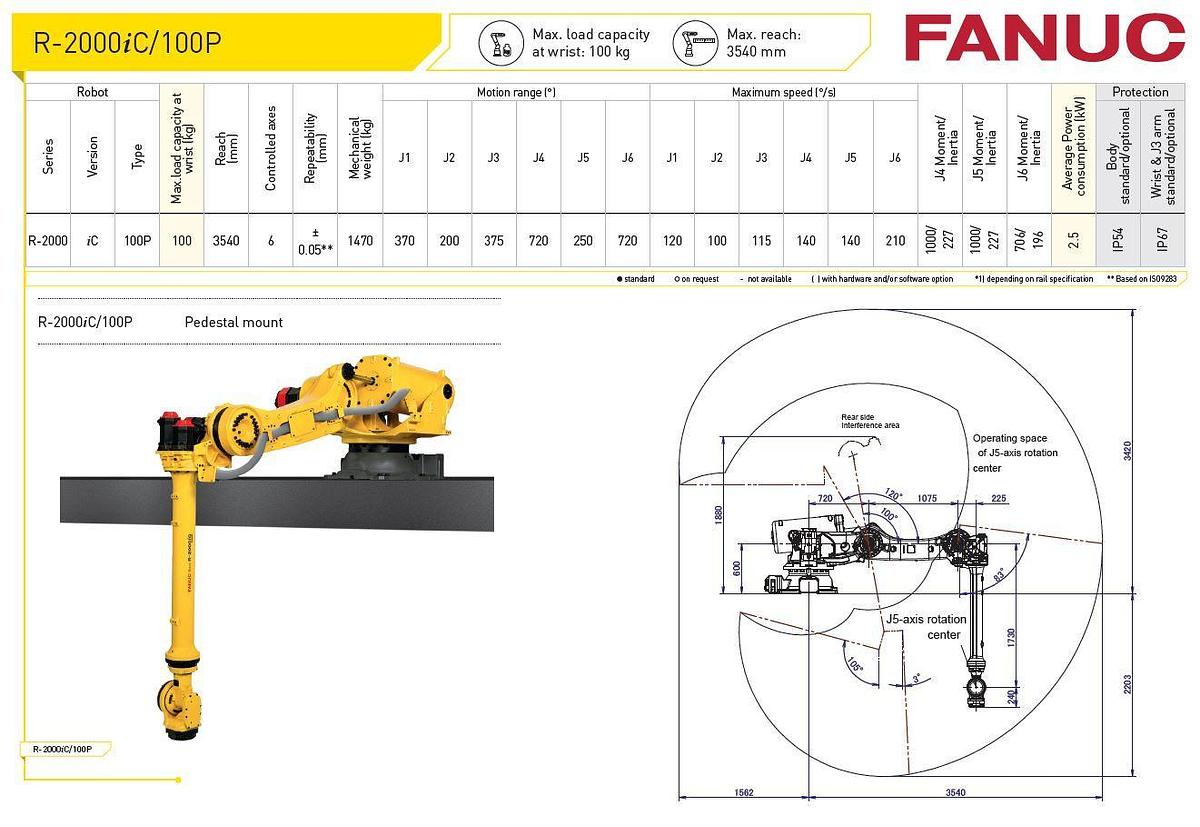

Fanuc R-2000iC/100P
Description
The R-2000iC/100P, as a pedestal mount version of the well-proven and highly reliable R-2000iC Series, ensures maximum productivity for press-to-press transfer applications in the Automotive and Automotive Components industries. It is quick and versatile, and it has been designed to shorten cycle times on a variety of operations.
This robot has faster J1 and J6 speeds which allow it to meet shorter standard press motion (SPM) cycle times.
Give us a call at 313-242-0505 or click the “Contact Us” button below to discuss your application with the RobotWorld engineering team.
Motion Range
| J1: | 370° |
| J2: | 200° |
| J3: | 375° |
| J4: | 720° |
| J5: | 250° |
| J6: | 720° |
Maximum Speed
| J1: | 120 |
| J2: | 100 |
| J3: | 115 |
| J4: | 140 |
| J5: | 140 |
| J6: | 210 |
Applications
Specifications
| Manufacturer | Fanuc |
| Model | R-2000iC/100P |
| Condition | New |
| Axes | 6 |
| Payload | 100 kg |
| H-Reach | 3540 mm |
| Repeatability | ±0.05 mm |
| Robot Mass | 1470 kg |
| Controller | R30iB Plus |
| Mounting | Pedestal |
