Fanuc R-2000iC/125L
Description
The Fanuc R-2000iC/125L robot extends the high performance and payload capacities of the R-2000iC series of robots. It is capable of handling heavy loads precisely within a generous work envelope and is equipped with 6 axes for ultimate flexibility, making it the ideal choice for high-payload applications requiring excellent repeatability.
This long are model provides extreme flexibility, allowing you to move large payloads within a large envelope of up to 3100 mm.
Press the “Contact Us” button below to have our RobotWorld engineering team reach out to you or give us a call at 313-242-0505 today! We are a Fanuc Authorized Integrator based in Madison Heights, Michigan.
Motion Range
| J1: | 370° |
| J2: | 136° |
| J3: | 301° |
| J4: | 720° |
| J5: | 250° |
| J6: | 720° |
Maximum Speed
| J1: | 130 |
| J2: | 115 |
| J3: | 125 |
| J4: | 180 |
| J5: | 180 |
| J6: | 260 |
Applications

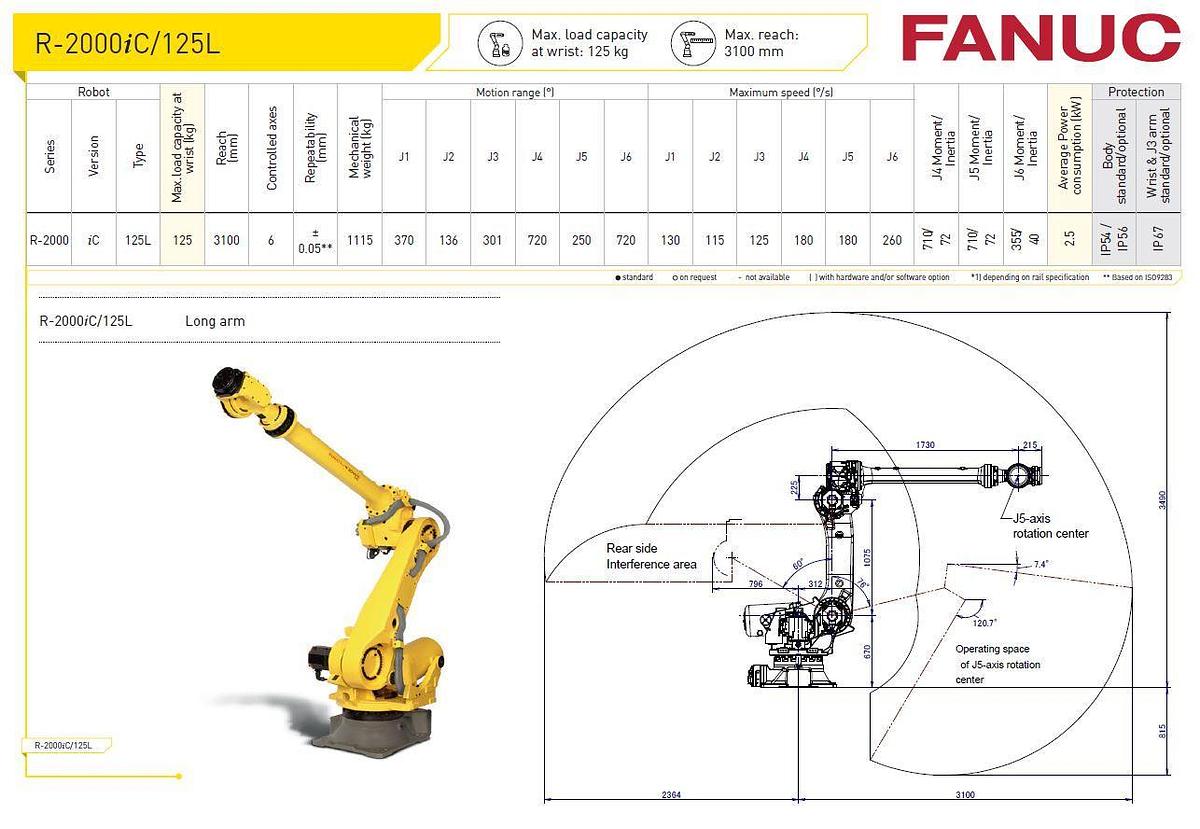

Specifications
| Manufacturer | Fanuc |
| Model | R-2000iC/125L |
| Condition | New |
| Axes | 6 |
| Payload | 125 kg |
| H-Reach | 3100 mm |
| Repeatability | ±0.05 mm |
| Robot Mass | 1115 kg |
| Controller | R30iB |
| Mounting | Floor |
