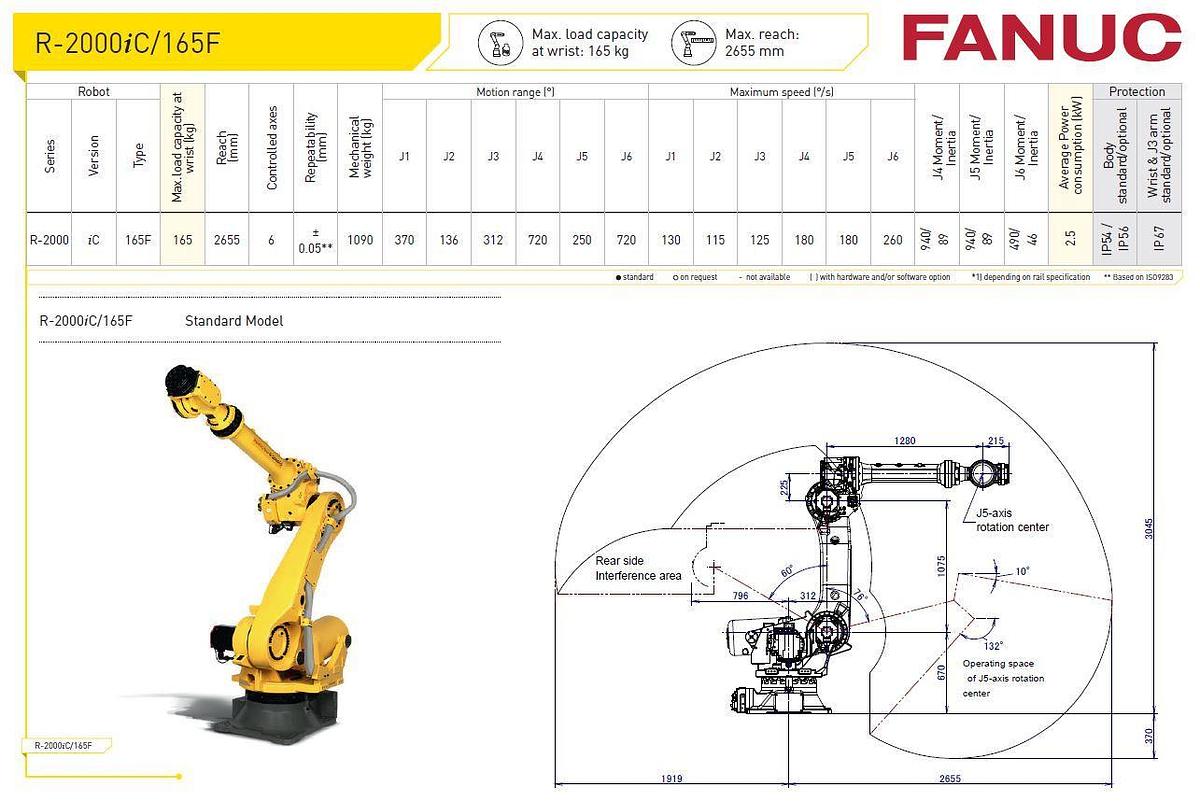

Fanuc R-2000iC/165F

Description

The FANUC R-2000iC/165F is part of the R-2000iC family of industrial robots with a wide range of payloads and reach. The six-axis robot has a compact design with a thin wrist that allows it to operate in small spaces. The robot, with a 165kg payload and a reach of 2,655mm, is a powerful and versatile solution for a wide range of material handling and spot welding applications.

Whatever the application, this model’s 165 kg capacity makes it an excellent choice for tasks requiring large payloads.

Please use the “Contact Us” button below to have our RobotWorld engineering team contact you, or call us at 313-242-0505 today!

Motion Range

J1:  370°
J2:  136°
J3:  312°
J4:  720°
J5:  250°
J6:  720°

Maximum Speed

J1: 130
J2: 115
J3: 125
J4: 180
J5: 180
J6: 260

Applications

Specifications

ManufacturerFanuc
ModelR-2000iC/165F
ConditionNew
Axes6
Payload165 kg
H-Reach2655 mm
Repeatability±0.05 mm
Robot Mass1090 kg
ControllerR30iB
MountingFloor
