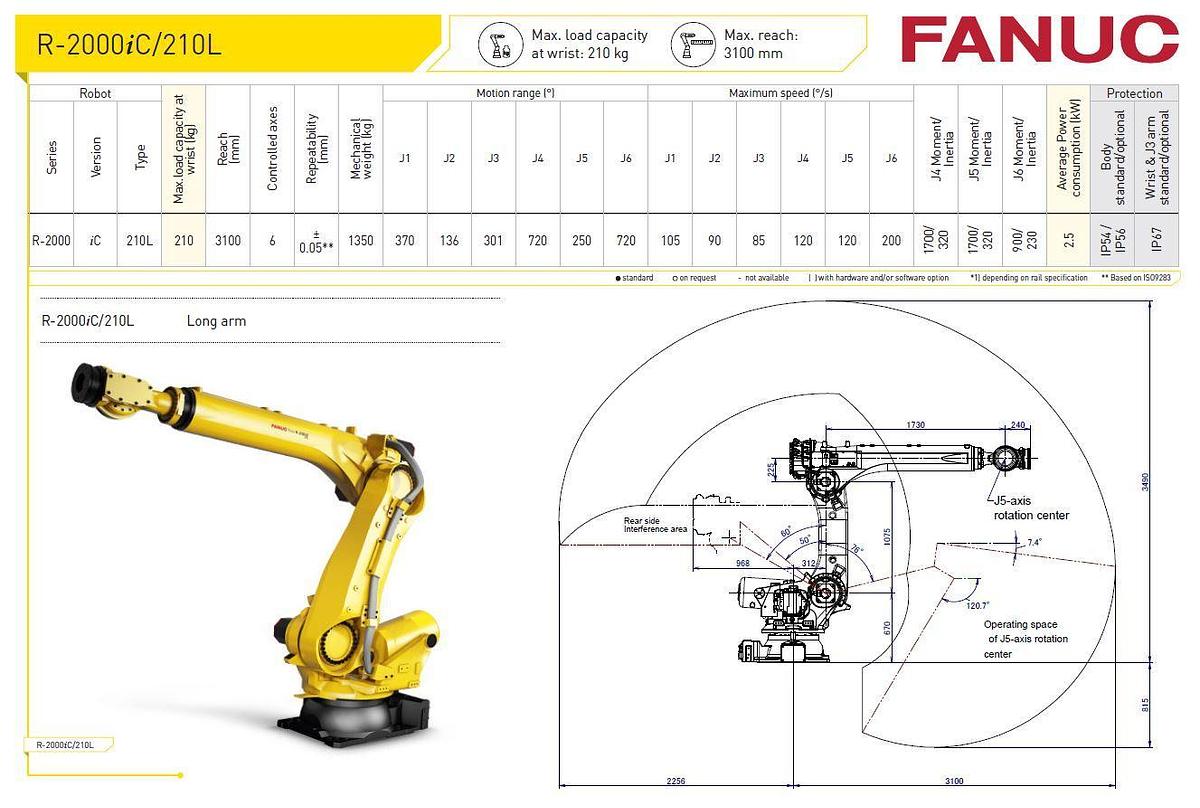

Fanuc R-2000iC/210L
Description
The R-2000iC/210L Fanuc industrial robot replaces the R-2000iB/185L model. However, this robot can lift an additional 25 kg and has improved rigidity, wrist load moment, and inertia. The R-2000iC/210L is ideal for automotive applications like spot welding. Because of its relatively small size, it can easily fit into crowded factory environments.
With a reach of 3100 mm and a payload capacity of 210 kg, this industrial robot is an excellent choice for tasks requiring large payloads. It is also commonly used for part transfer and pick & place applications.
Press the “Contact Us” button below to have our RobotWorld Automation team reach out to you or give us a call at 313-242-0505 today!
Motion Range
| J1: | 370° |
| J2: | 136° |
| J3: | 301° |
| J4: | 720° |
| J5: | 250° |
| J6: | 720° |
Maximum Speed
| J1: | 105 |
| J2: | 90 |
| J3: | 85 |
| J4: | 120 |
| J5: | 120 |
| J6: | 200 |
Applications
Specifications
| Manufacturer | Fanuc |
| Model | R-2000iC/210L |
| Condition | New |
| Axes | 6 |
| Payload | 210 kg |
| H-Reach | 3100 mm |
| Repeatability | ±0.05 mm |
| Robot Mass | 1350 kg |
| Controller | R30iB |
| Mounting | Floor |
