Fanuc R-2000iC/210R
Description
Because of its large 3095 mm work envelope, this Fanuc R-2000iC/210R rack-mounted model saves space while providing enormous flexibility. It is the ideal solution for a wide range of high-payload applications due to its high performance and excellent payload capacities. The rack-mounting increases the versatility of operations that require extended reach. When equipped with a compact dressout package, it also functions as a highly efficient spot welding robot.
Please use the “Contact Us” button below to have our RobotWorld engineering team contact you, or call us at 313-242-0505 today!

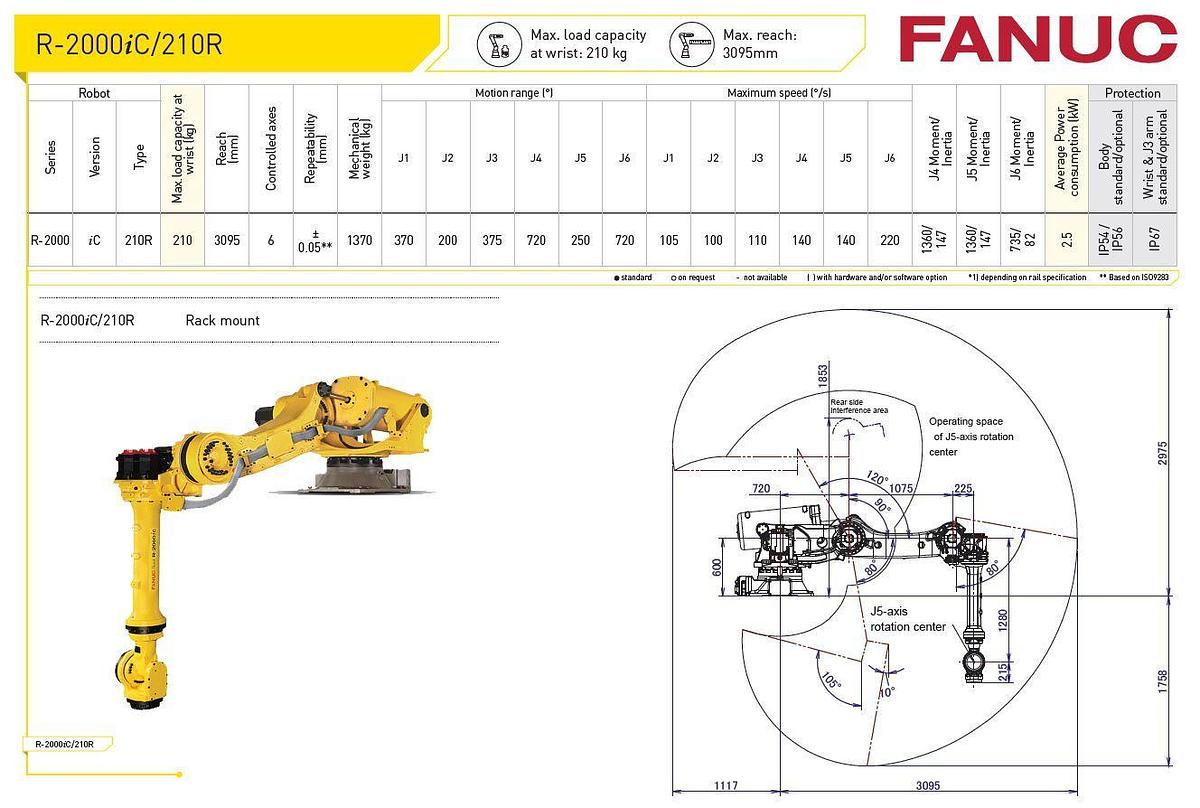

Motion Range
| J1: | 370° |
| J2: | 200° |
| J3: | 375° |
| J4: | 720° |
| J5: | 250° |
| J6: | 720° |
Maximum Speed
| J1: | 105 |
| J2: | 100 |
| J3: | 110 |
| J4: | 140 |
| J5: | 140 |
| J6: | 220 |
Applications
Specifications
| Manufacturer | Fanuc |
| Model | R-2000iC/210R |
| Condition | New |
| Axes | 6 |
| Payload | 210 kg |
| H-Reach | 3095 mm |
| Repeatability | ±0.05 mm |
| Robot Mass | 1370 kg |
| Controller | R30iB |
| Mounting | Rack Mount |
