SIA20D

Description

Compact 7-Axis Robot Arm

Applications:
Assembly, Machine Tending, Material Handling, Part Transfer, Pick and Pack

The 7-axis actuator-based design and best-in-class wrist performance characteristics for the SIA20D provide amazing freedom of movement, coupled with ability to maneuver in very tight areas. Superior dexterity enables robot to reorient elbow(s) without affecting hand position or causing self-interference.

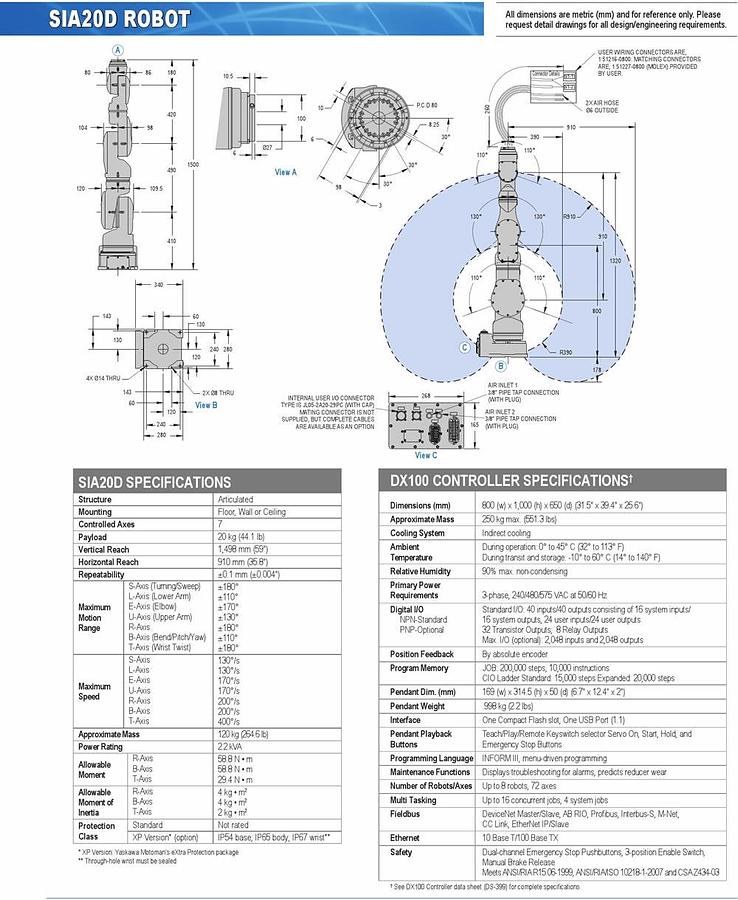

Specifications

ManufacturerYaskawa
ModelSIA20D
ConditionNew
ApplicationsAssembly, Machine Tending, Material Handling, Part Transfer, Pick and Pack
Payload20.0 kg
ControllerDX100
Horizontal Reach910 mm
Vertical Reach1498 mm

Documents
