SIA50D

Description

50kg Payload 7-Axis Robot

Applications:
Machine Tending, Material Handling, Part Transfer

Amazing agility for a 50kg payload: This articulated robot is ideal for assembly, injection molding, inspection, machine tending and a host of other operations. 7-axis actuator-based design and best-in-class wrist performance characteristics provide amazing freedom of movement, coupled with ability to maneuver in very tight areas.

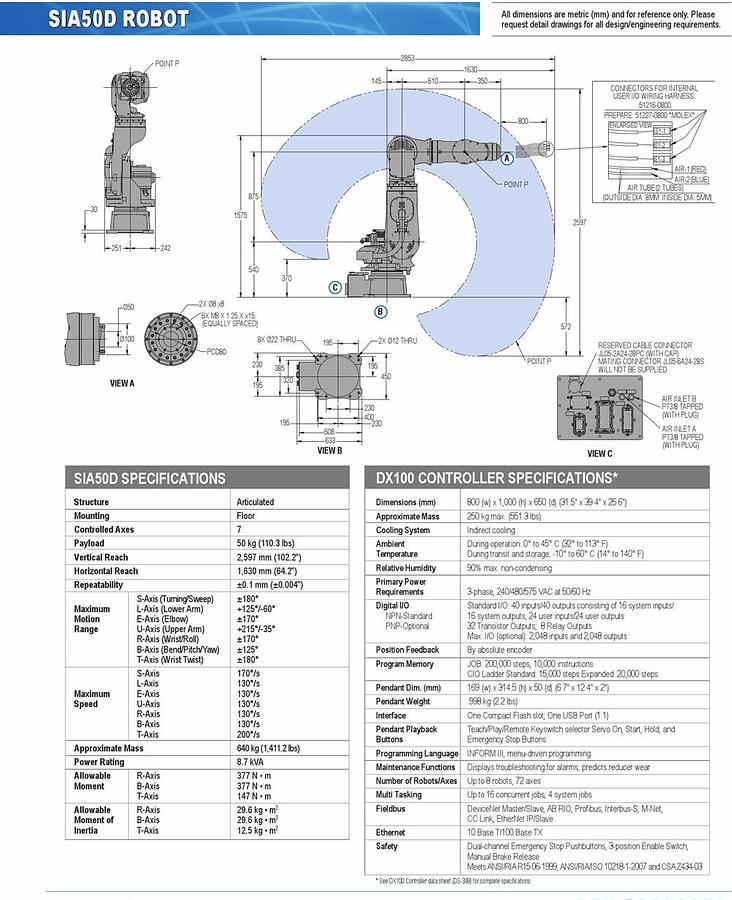

Specifications

ManufacturerYaskawa
ModelSIA50D
ConditionNew
ApplicationsMachine Tending, Material Handling, Part Transfer
Payload50.0 kg
ControllerDX100
Horizontal Reach1630 mm
Vertical Reach2597 mm

Documents
