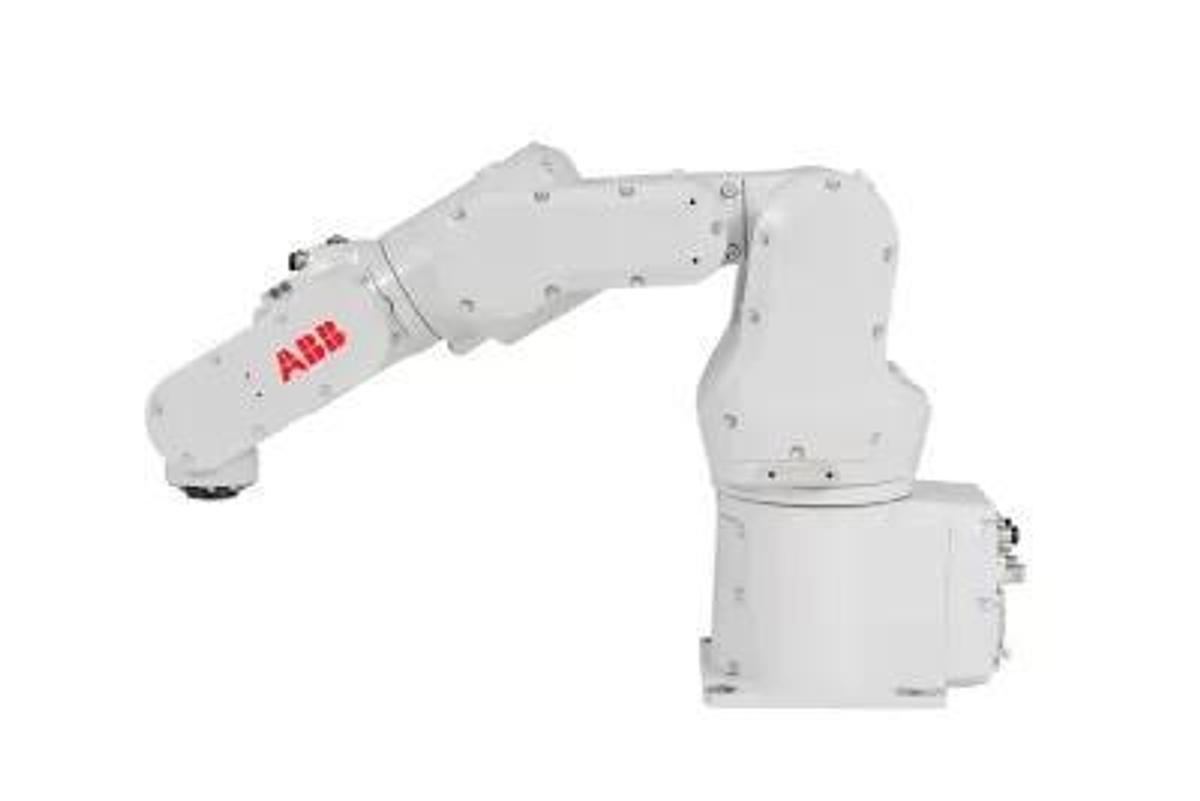

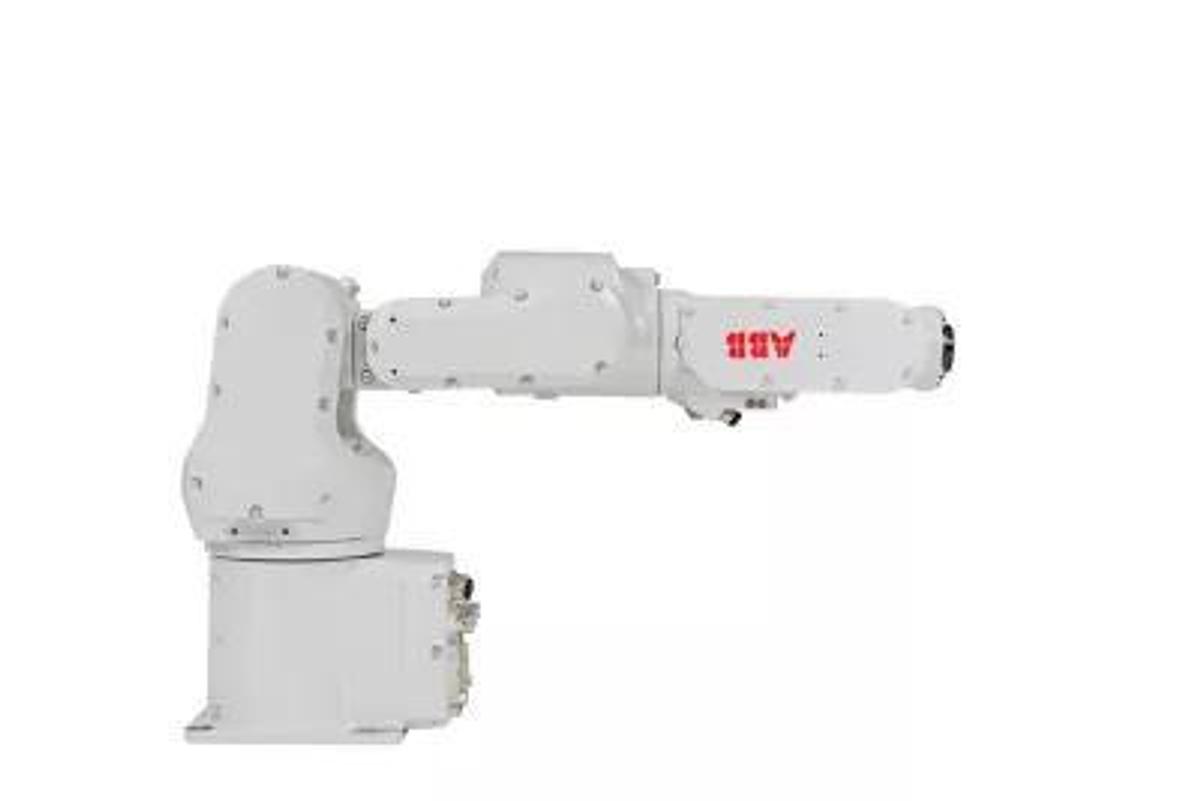

IRB 1100

Description

Highest payload for a robot of its class: IRB 1100 consistently outperforms similar robots in terms of payload and position repeatability (RP) even when under space constraints. Indeed, IRB 1100 offers the highest payload for a robot of its class.

Up to 35% faster cycle times: Aimed at increasing manufacturing productivity, IRB 1100 provides up to 35% faster cycle times and best-in-class repeatability for high quality manufacturing.

10% smaller footprint and over 20% weight reduction: Compared to the previous generation, the IRB 1100 robot design was optimized with a 10% smaller footprint and over 20% weight reduction for space efficient installation in diverse environments, such as electronics manufacturing factories.

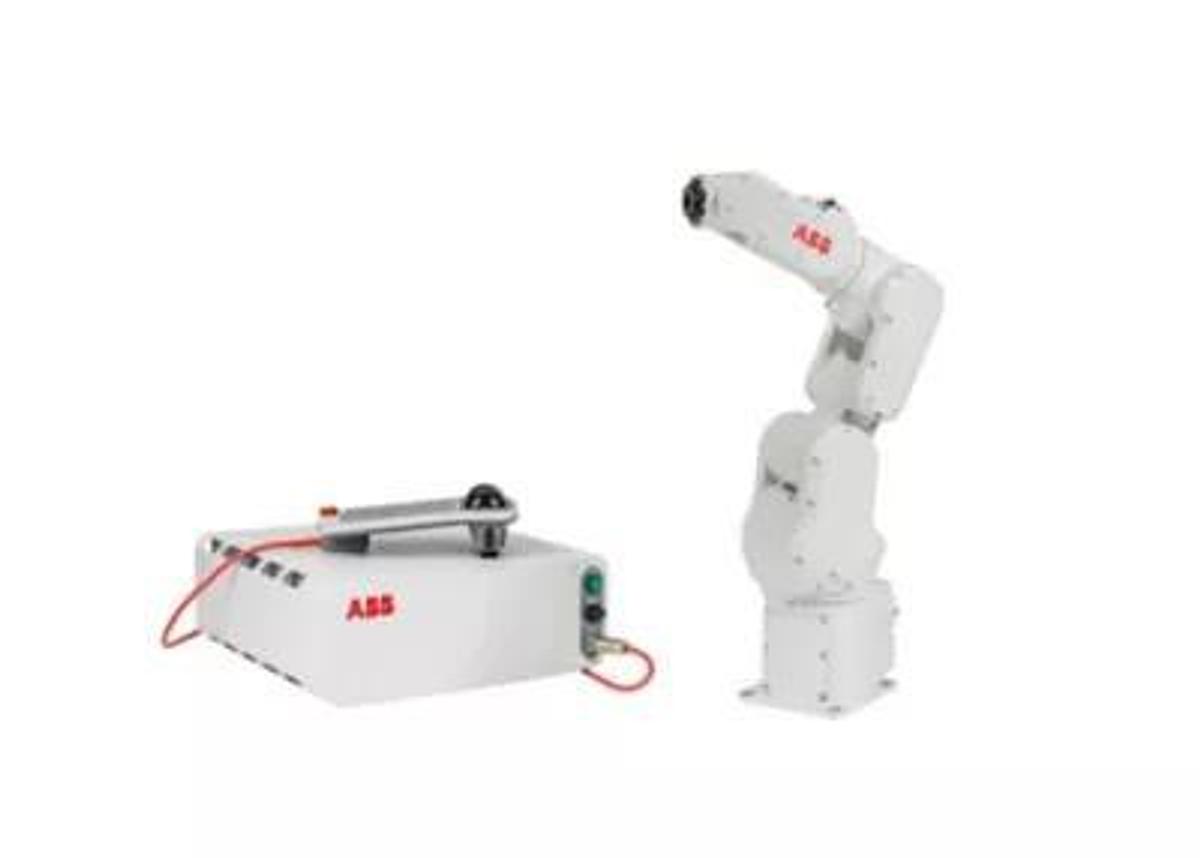

Powered by ABB’s new OmniCore controller: Powered by ABB’s new OmniCore controller, IRB 1100 is equipped with advanced motion control capabilities, making it ideal for supporting rapid assembly, pick-and-place, and material handling applications

Rugged yet compact IP67 rated: The IRB 1100 has IP40 as standard protection and IP67 as option. The entire robot is designed to be IP67 compliant according to IEC 60529 - from base to wrist, which means that the electrical compartments are sealed against water and solid contaminants.

Cleanroom ISO 4: IRB 1100 Cleanroom version provides lower production costs to industries requiring minimal environmental pollutants.

Specifications

ManufacturerABB
ModelIRB 1100
ConditionNew
Reach up to0.58 m
Payload4 kg
Armload0.5 kg
